Hansgrohe SE

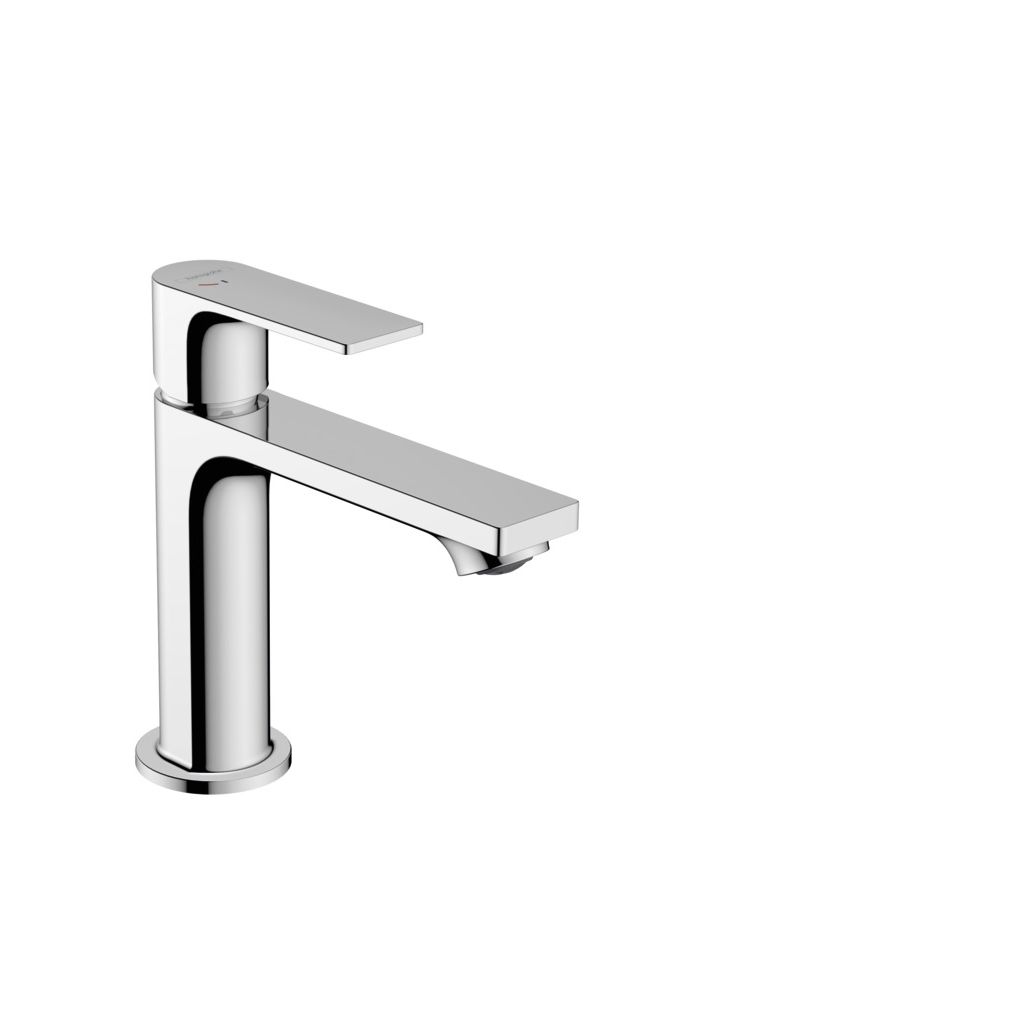

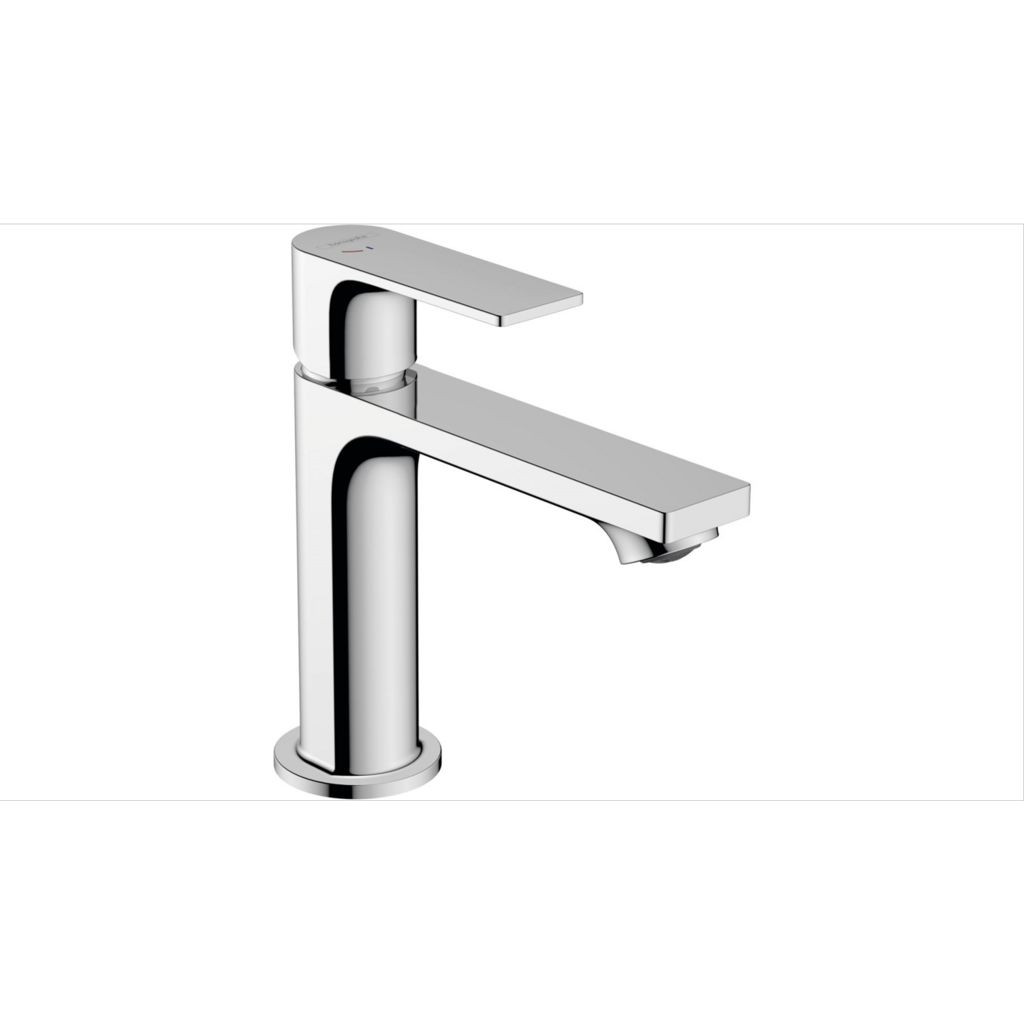

hansgrohe Rebris E Einhebel-Waschtischmischer 110 CoolStart mit Zugstangen-Ablaufgarnitur

Registration Code: H3Q4SD

Quality phase
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 72559000
Surface: Chrome
consists of: single lever basin mixer, waste set
ComfortZone 110
projection: 133 mm
spout height: 109 mm
handle variant: lever handle
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
suitable for continuous flow water heaters
pop-up waste set G 1¼
material waste set: synthetic
connection type: G ⅜ connections
connection dimension: DN15
cold water in basic handle position
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-rebris-e-single-lever-basin-mixer-110-coolstart-with-pop-up-waste-set-72559000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use

Documents

Downloads

Produktdatenblatt_72559000.pdf

pdf
2 MB

Rebris E 110 CoolStart_Montageanleitung.pdf

pdf
10 MB

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Hansgrohe-Group-EPD-Basin-Faucets-2023.pdf

pdf
1 MB

Manufacturer note

CoolStart

Saving energy made easy

With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

Remove & Clean

Aerator with coin slot

Limescale and dirt on the outlet can be removed in no time - without tools. If residue has formed, simply use a coin to unscrew the aerator. Place it in citric acid for ten minutes, rinse, screw it back in with a coin, and you're done.

EU Taxonomy

Substantial Contribution

With a maximal  flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Green Building Certifications

With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

Contact the manufacturer

Hansgrohe SE

Hansgrohe SE

Auestraße 5-9
77761 Schiltach
