Hansgrohe SE

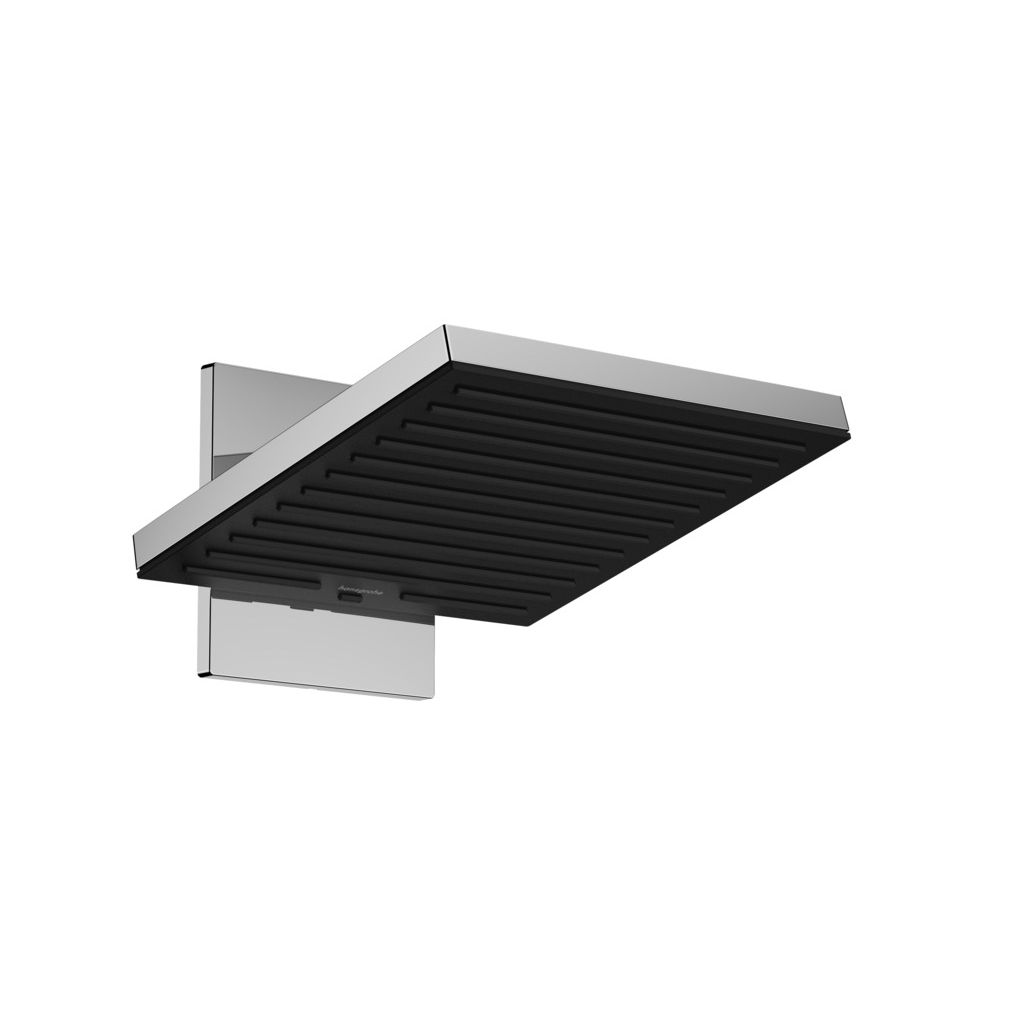

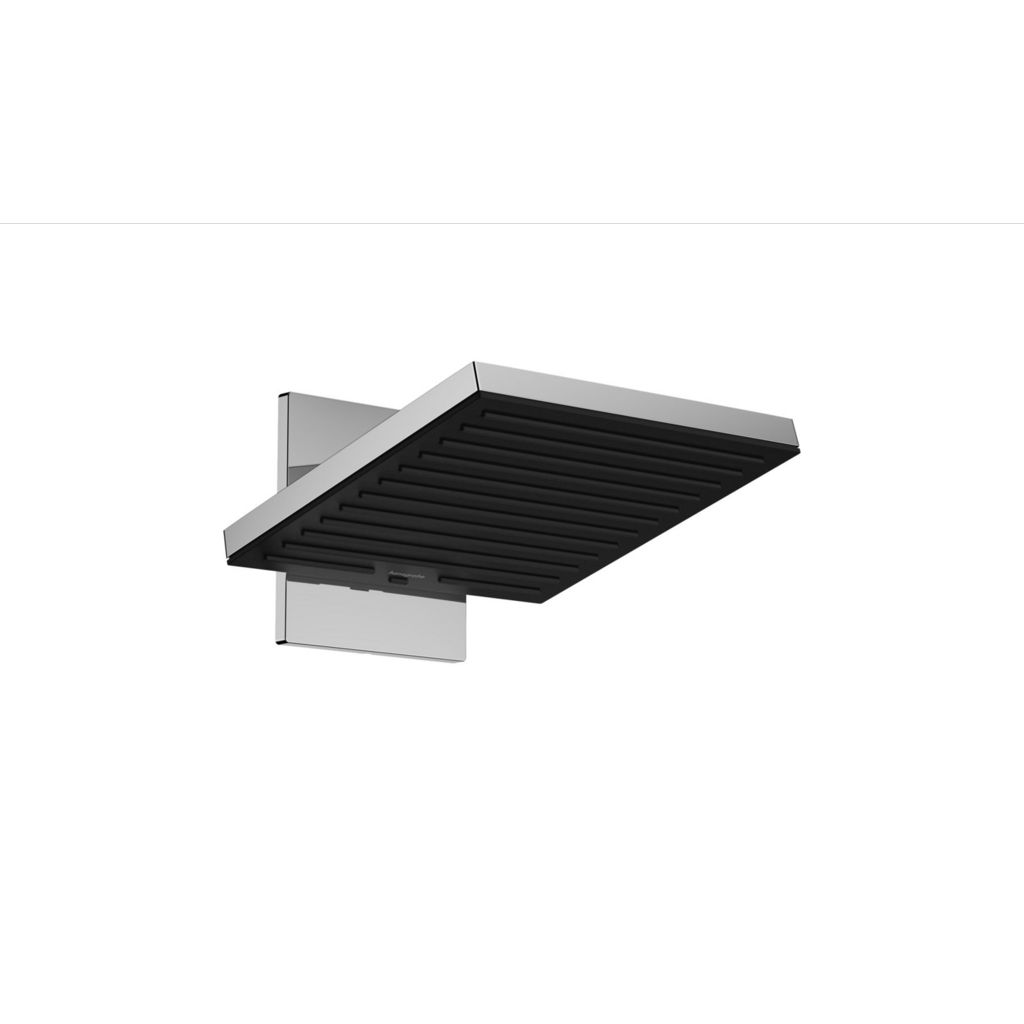

hansgrohe Pulsify E Kopfbrause 260 2jet EcoSmart mit Wandanschluss

Registration Code: 2WIZUC

Quality phase
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 24351000
Surface: Chrome
consists of: overhead shower, wall connector
shower head size: 260 x 260 mm
spray type: PowderRain, Intense PowderRain
Fast Drain empties the overhead shower from an angle of 10°
ball-joint: overhead shower angle adjustable
material spray disc: plastic
spray disc surface: graphite
maximum flow rate at 3 bar: 8 l/min
flow rate PowderRain spray (at 3 bar): 8 l/min
flow rate Intense PowderRain (at 3 bar): 7,8 l/min
function from: 7,7 l/min
minimum flow pressure: 1,3 bar
overhead shower removable for cleaning
installation: wall-mounted - based on iBox
connection type: basic set
suitable for continous flow water heaters
EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-pulsify-e-overhead-shower-260-2jet-ecosmart-with-wall-connector-24351000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs

Documents

Downloads

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Pulsify E KB 260 2jet EcoSmart_Montageanleitung.pdf

pdf
20 MB

Produktdatenblatt_24351000.pdf

pdf
3 MB

Manufacturer note

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

EU Taxonomy

With a maximal  flow rate of 8l/min this shower is compliant with the EU Taxonomy requirements and is compliant with the relevant environmental goals defined by the EU (DNSH*).

*Do No Significant Harm

EcoSmart

Want to save water? With pleasure!

This shower head uses up to 40% less water than our conventional showers. In this way, it reduces water and energy costs every day and conserves valuable resources. For long-lasting soothing showering pleasure.

Fast Drain

Minimizes annoying dripping

An efficient and convenient way to empty the shower head and significantly reduce dripping after showering. So that nobody and no shower surface gets unintentionally caught in the rain once dry.

Green Building Certifications

With a maximum flowrate of 8 l/min this shower is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

Adjustable Shower Head

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
