Hansgrohe SE

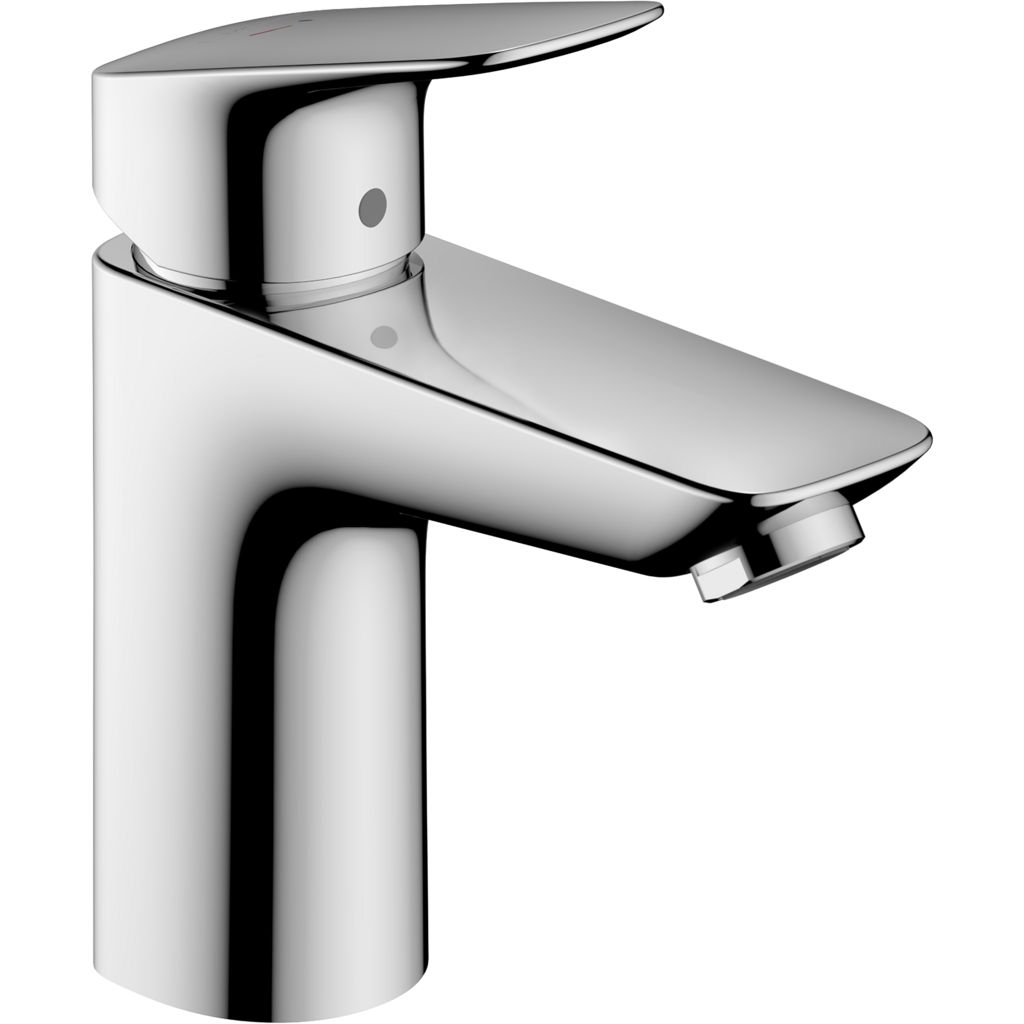

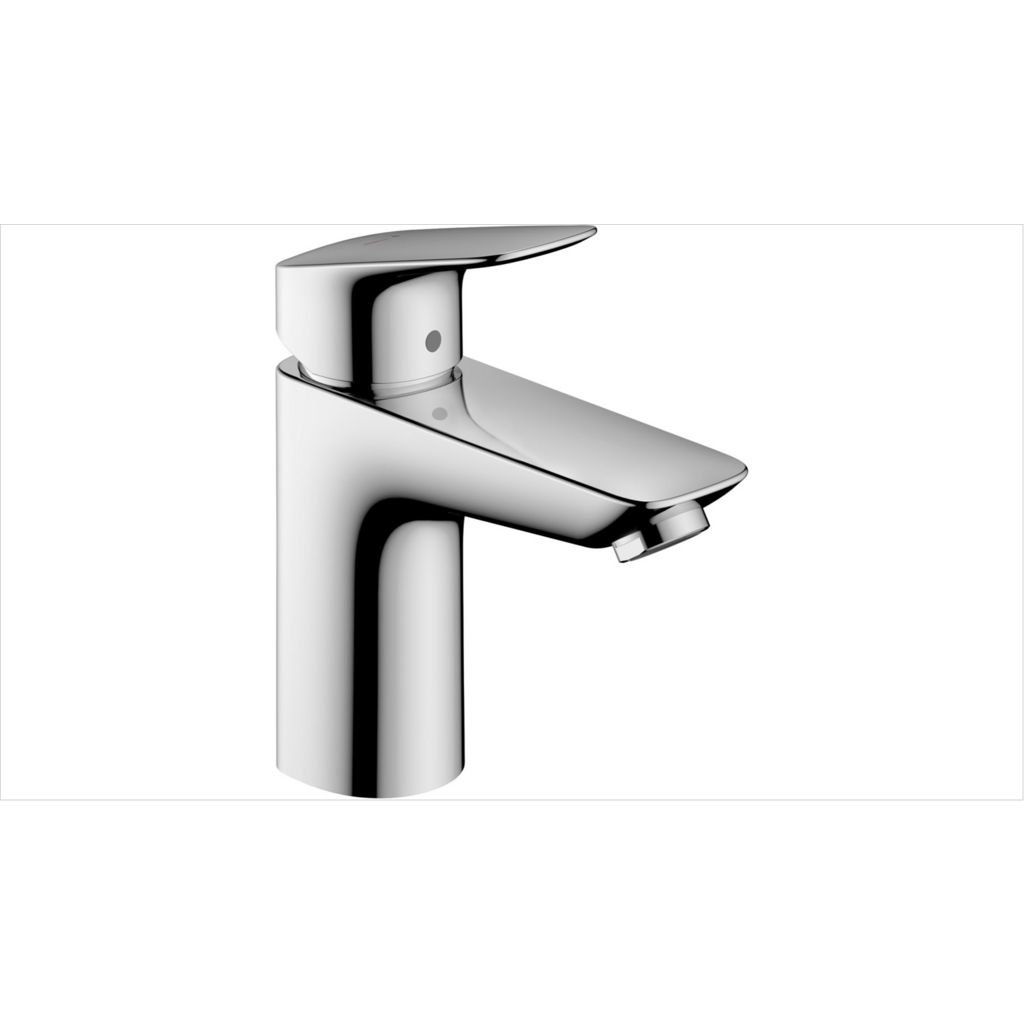

hansgrohe Logis Einhebel-Waschtischmischer 100 CoolStart mit Zugstangen-Ablaufgarnitur
Registration Code: SVY5VW
Quality phase
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description
Article number: 71102000Surface: Chrome
consists of: single lever basin mixer, waste set
ComfortZone 100
projection: 108 mm
spout height: 93 mm
handle variant: lever handle
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
suitable for continuous flow water heaters
pop-up waste set G 1¼
material waste set: synthetic
connection type: G ⅜ connections
connection dimension: DN15
cold water in basic handle position
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
EPD available for basin mixer
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/articledetail-logis-single-lever-basin-mixer-100-coolstart-with-pop-up-waste-set-71102000
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Manufacturer note
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.CoolStart
Saving energy made easy
With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.EU Taxonomy
Substantial Contribution
With a maximal flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.Green Building Certifications
With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.Contact the manufacturer
