Hansgrohe SE
hansgrohe Crometta S Showerpipe 240 1jet EcoSmart mit Thermostat
Registration Code: TF37ON
Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description

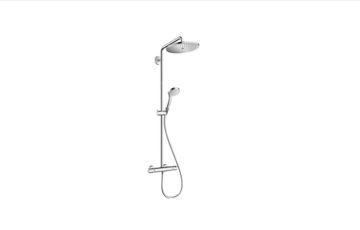

Article Number: 27268000Surface: Chrome
consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
overhead shower Crometta S 240
shower head size overhead shower: 240 mm
spray type overhead shower: Rain
spray type hand shower: Rain, IntenseRain
flow rate of hand shower at 3 bar: 7,6 l/min
maximum flow rate for Showerpipe at 3 bar: 7,6 l/min
minimum flow pressure: 1 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
hand shower holder inclination angle can be adjusted by 45°
pipe can be shortened in height
shower bar diameter: 22 mm
height-adjustable hand shower holder
shower arm length overhead shower: 350 mm
thermostat Ecostat 1001 CL
safety stop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension DN15
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
pipe length: 1201 mm
2 functions
EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
EPD for Showerpipes available
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/articledetail-crometta-s-showerpipe-240-1jet-ecosmart-with-thermostat-27268000
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Manufacturer note
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.Green Building Certifications
With a maximum flowrate of 7,6 l/min this showerpipe is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.EU Taxonomy
With a maximal flow rate of 7,6l/min this showerpipe is compliant with the EU Taxonomy requirements and is compliant with the relevant environmental goals defined by the EU (DNSH*).EcoSmart
Want to save water? With pleasure!
This showerpipe uses up to 40% less water than our conventional showers. In this way, it reduces water and energy costs every day and conserves valuable resources. For long-lasting soothing showering pleasure.
Contact the manufacturer
Hansgrohe SE
Hansgrohe SE
Auestraße 5-9
77761 Schiltach
