Hansgrohe SE

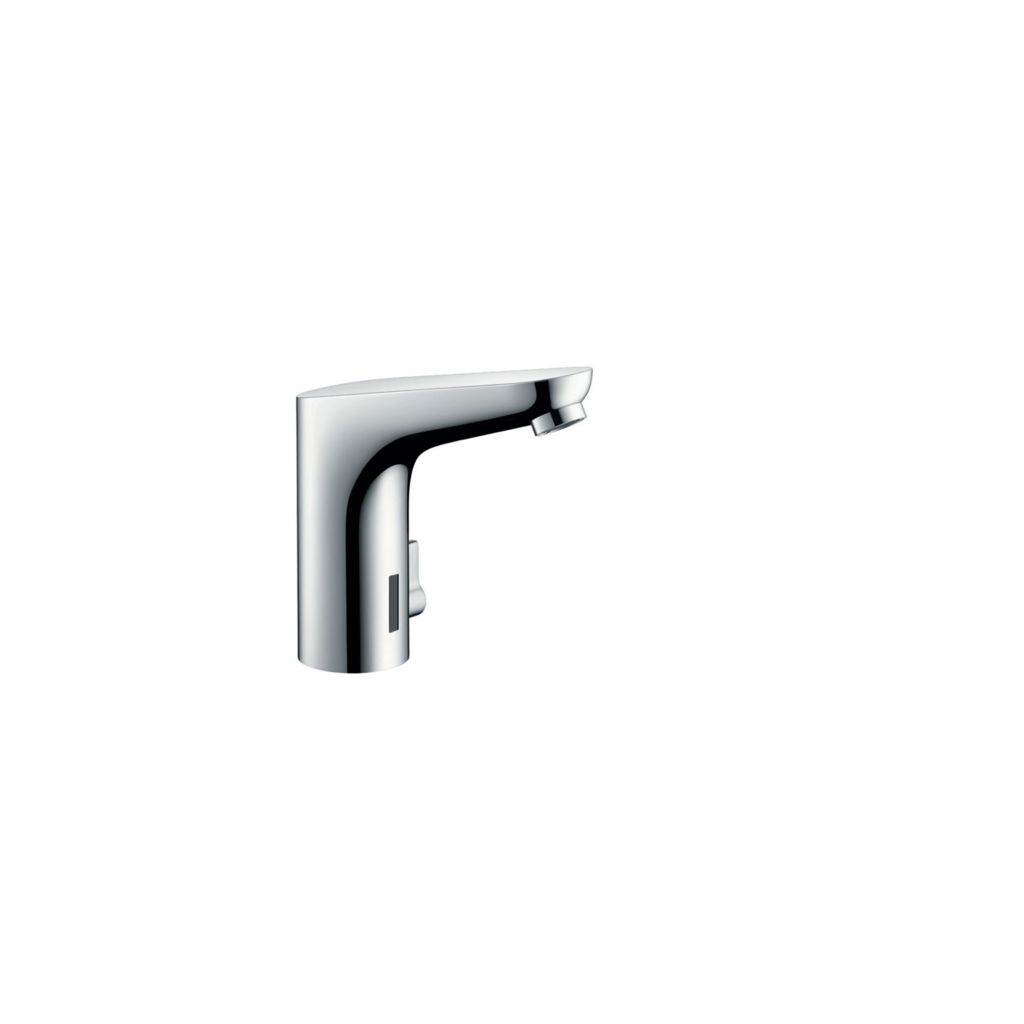

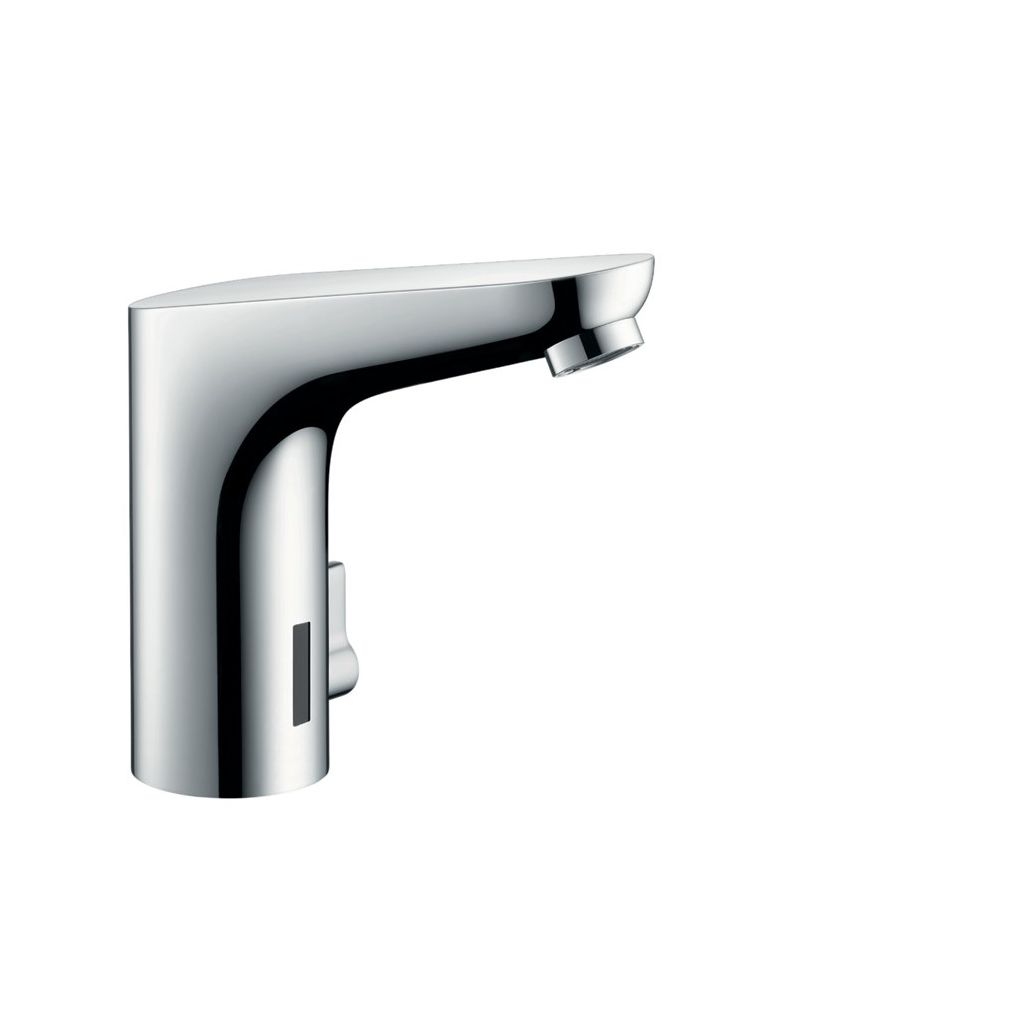

hansgrohe Focus Elektronik-Waschtischmischer 130 mit Temperaturregulierung Batteriebetrieb

Registration Code: 1OH0L7

Quality phase

ENV1.2 Version 2018 Risiken für die lokale Umwelt

not relevant for consideration

ENV1.2 Version 2023 Risiken für die lokale Umwelt

not relevant for consideration

Metalle

Product description

Article Number: 31171000
Surface: Chrome
ComfortZone 130
projection: 127 mm
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
temperature limitation adjustable
temperature adjustable via mixer lever on the side
non-return valve
suitable for continous flow water heaters
infrared sensor technology
automatic environmental adjustment of infrared sensor
adjustable optical range of infrared sensor (2 settings)
battery condition indicator available
battery operation 6V (lifetime approx. 2 years, battery included in scope of supply)
running time: 10 s
hygiene rinse activatable (automatic water flow)
frequency of hygiene rinse: 24 h
flushing time hygiene rinse: 10 s
permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
cleaning mode: manual water stop for washbasin cleaning
connection dimension: DN15
TÜV certified
dirt filters in the connection hoses
EPDavailable for basin mixer

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-focus-electronic-basin-mixer-130-with-temperature-control-battery-operation-31171000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume

ECO1.1 Life cycle costs

PRO1.4 Ensuring sustainability aspects in tendering and contracting

PRO2.5 Preparation of sustainable use

Documents

Downloads

hansgrohe Service Instruction.pdf

pdf

2 MB

Hansgrohe-Group-EPD-Basin-Faucets-2023.pdf

pdf

1 MB

Montageanleitung_Focus E-Waschtischmischer.pdf

pdf

8 MB

Produktdatenblatt_31171000.pdf

pdf

2 MB

hansgrohe Reinigungsempfehlung.pdf

pdf

1 MB

Focus E-Wash Basn Mixer_Assembly Instruction.pdf

pdf

8 MB

Product Data Sheet_31171000.pdf

pdf

2 MB

Manufacturer note

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

Green Building Certifications

With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

SensorActivation

Starts the electronic tap

The sensor on this contactless tap acts like a motion sensor as it responds to changes in the infrared rays. Water only flows once it detects warmth from hands. This is economical and environmentally friendly as well as contactless and hygienic.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

EU Taxonomy

Substantial Contribution

With a maximal flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
