Hansgrohe SE

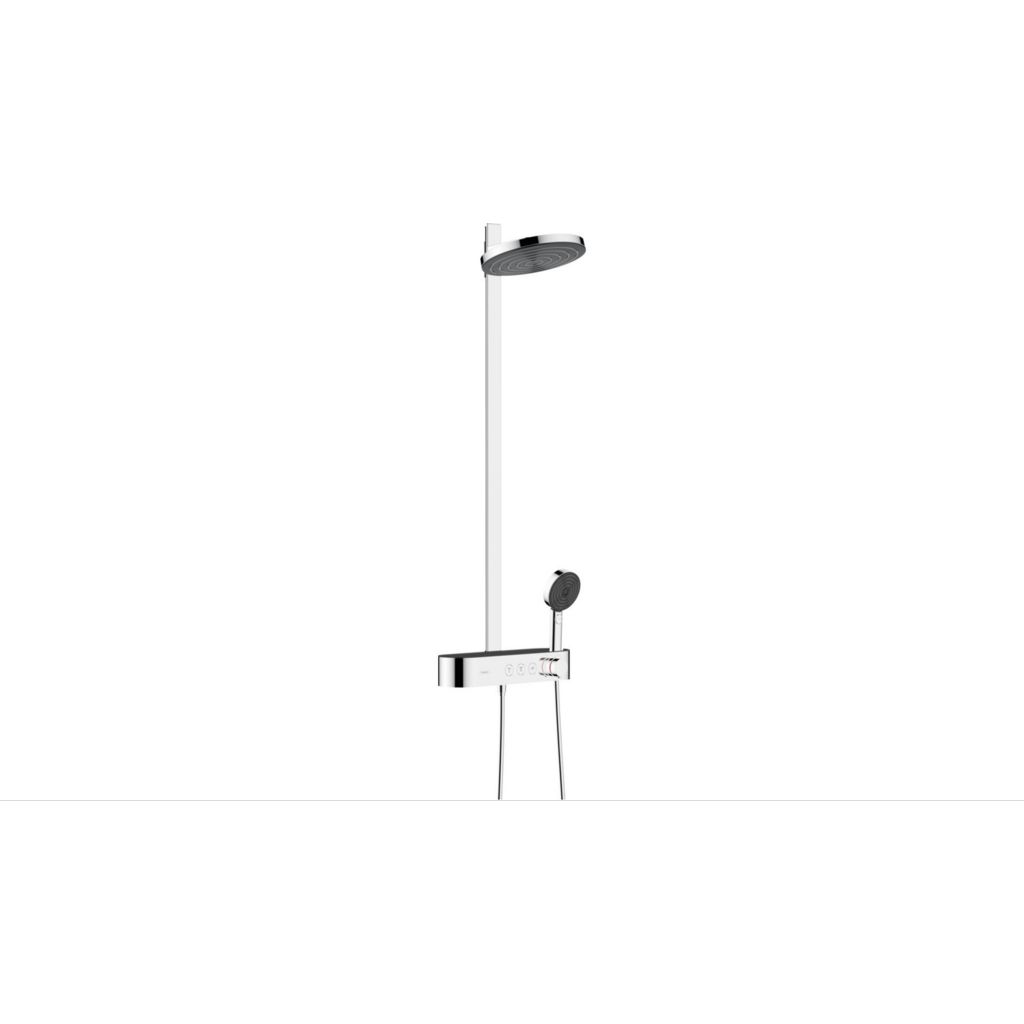

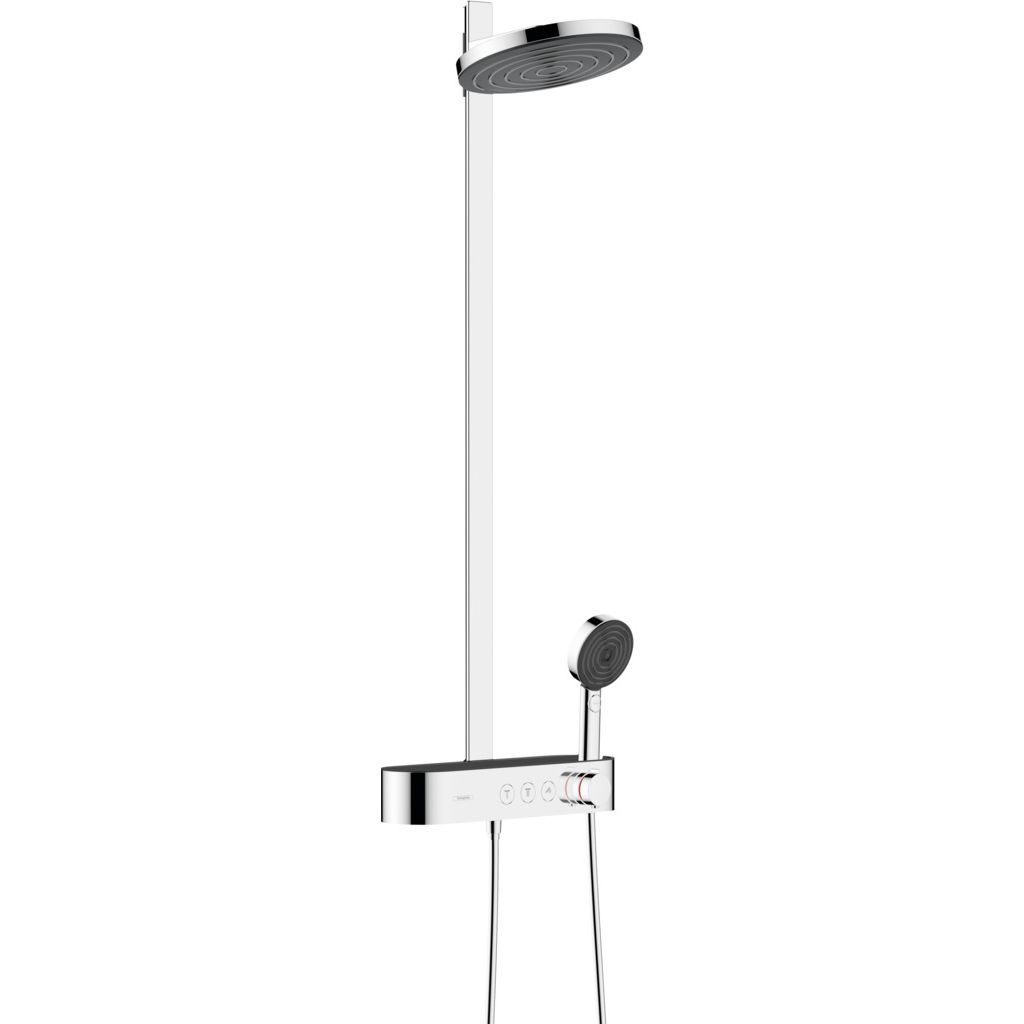

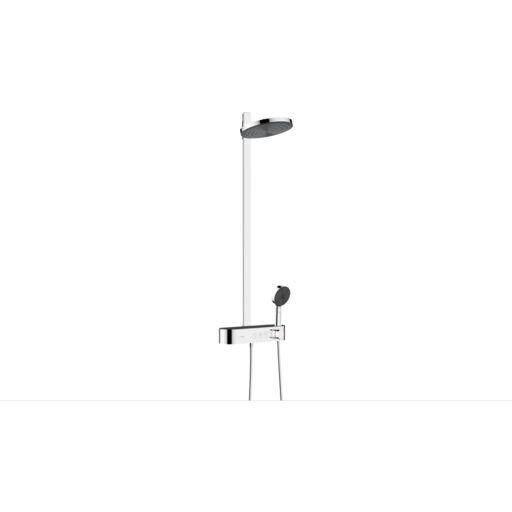

hansgrohe Pulsify S Showerpipe 260 2jet EcoSmart mit ShowerTablet Select 400
Registration Code: 77Y35L
Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description
Article Number: 24241000Surface: Chrome
consists of: overhead shower, hand shower, shower thermostat, shower bar, shower hose
overhead shower Pulsify 260 2jet
shower head size overhead shower: 260 mm
spray type overhead shower: PowderRain, Intense PowderRain
spray disc surface: graphite
Fast Drain empties the overhead shower from an angle of 10°
removable shower head
shelf made of plastic
surface shelf: graphite
flow rate PowderRain spray (at 3 bar): 7,5 l/min
spray type hand shower: PowderRain, IntenseRain, Massage spray
flow rate of hand shower at 3 bar: 7,5 l/min
maximum flow rate for Showerpipe at 3 bar: 7,5 l/min
minimum flow pressure: 1,7 bar
max. operating pressure: 10 bar
ball-joint: overhead shower inclinable by 13-39°
pipe can be shortened in height
bar width: 48 mm
shower arm length overhead shower: 233 mm
CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat ShowerTablet Select 400
simultaneous utilization of 3 functions
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
Thermostat is delivered with buttons hand shower, PowderRain, Intense PowderRain
water flow control with stop function
2 functions
EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/articledetail-pulsify-s-showerpipe-260-2jet-ecosmart-with-showertablet-select-400-24241000
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Manufacturer note
CoolContact
Safe and indulgent showering
This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.Water flow control
For mindful use of water.
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.EU Taxonomy
With a maximal flow rate of 7,5 l/min this showerpipe is compliant with the EU Taxonomy requirements and is compliant with the relevant environmental goals defined by the EU (DNSH*)
*Do No Significant Harm
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.Green Building Certifications
With a maximum flowrate of 7,5 l/min this showerpipe is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.EcoSmart
Want to save water? With pleasure!
This shower head uses up to 40% less water than our conventional showers. In this way, it reduces water and energy costs every day and conserves valuable resources. For long-lasting soothing showering pleasure.
Fast Drain
Minimizes annoying dripping
An efficient and convenient way to empty the shower head and significantly reduce dripping after showering. So that nobody and no shower surface gets unintentionally caught in the rain once dry.Contact the manufacturer
Hansgrohe SE
Hansgrohe SE
Auestraße 5-9
77761 Schiltach
