Hansgrohe SE

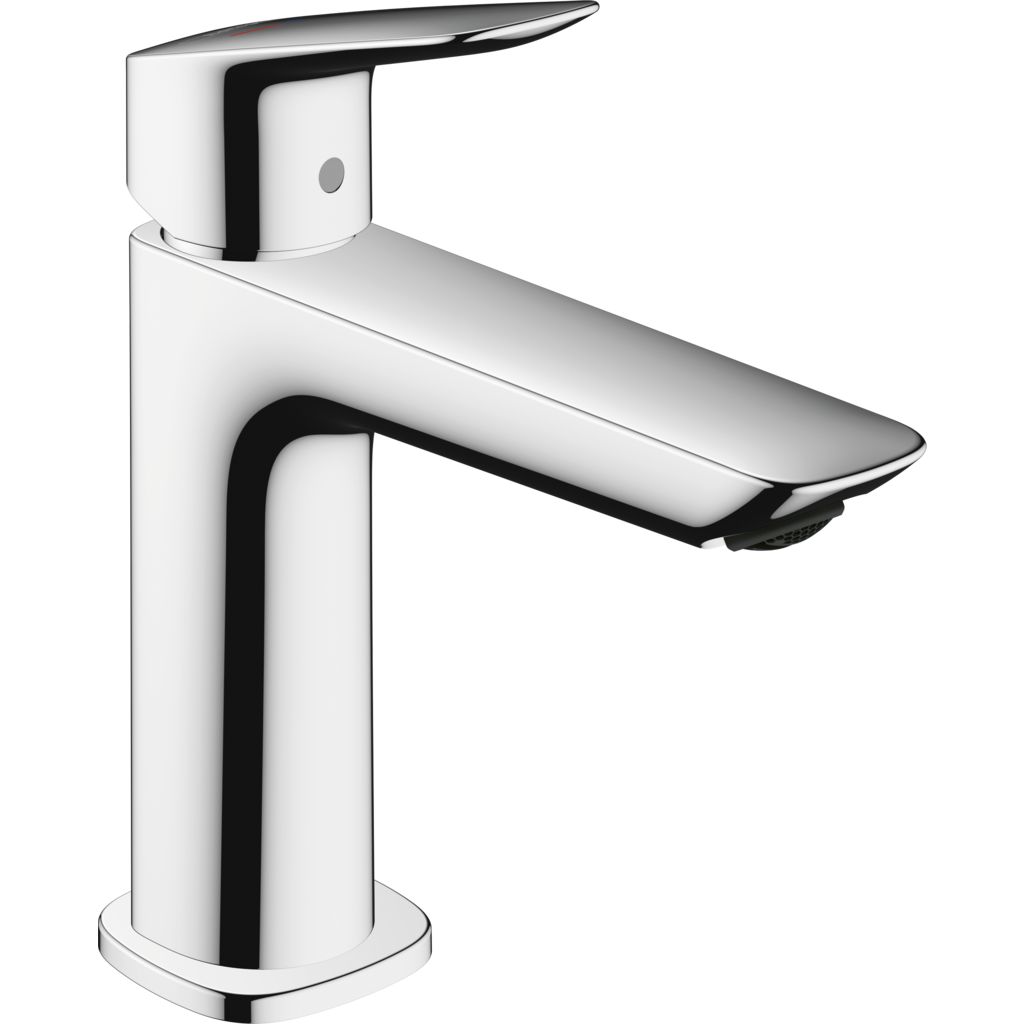

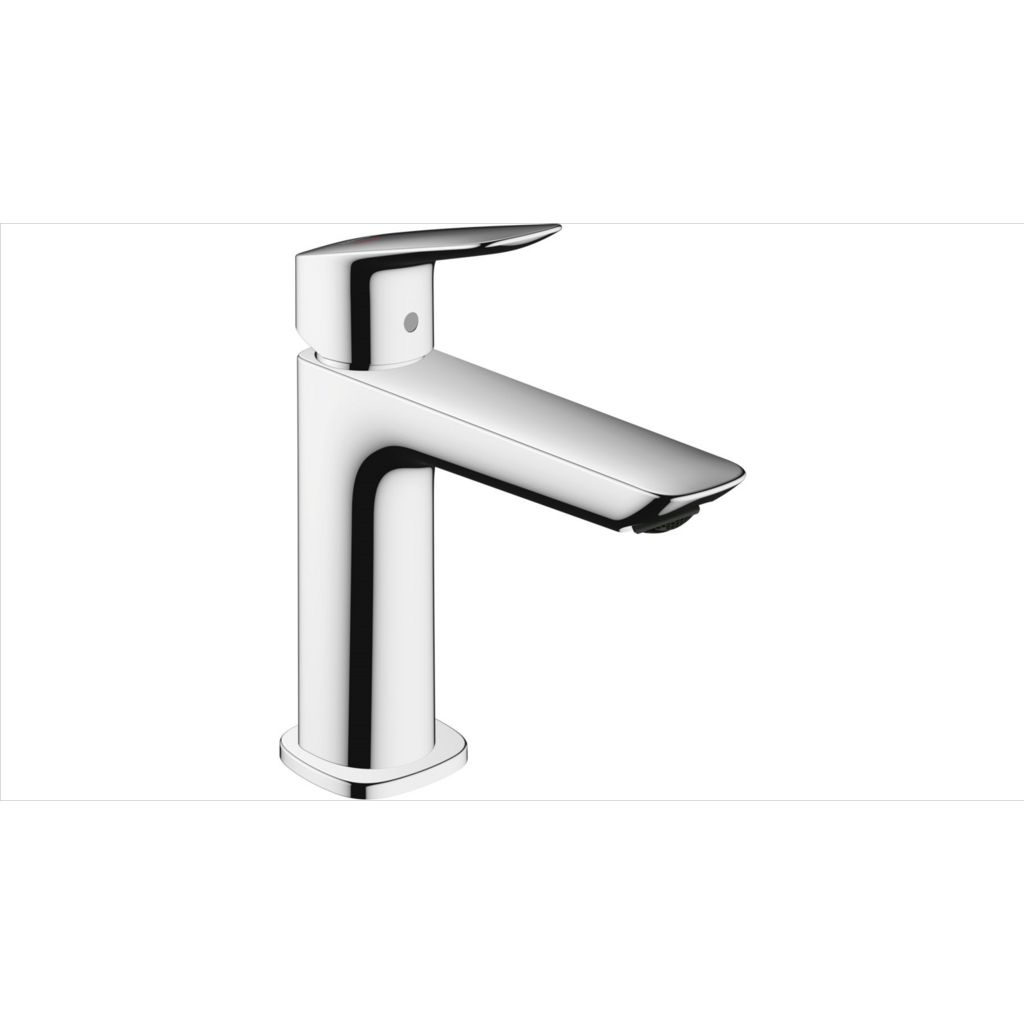

hansgrohe Logis Einhebel-Waschtischmischer 110 Fine CoolStart mit Zugstangen-Ablaufgarnitur

Registration Code: 4NI46Z

Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 71254000
Surface: Chrome
consists of: single lever basin mixer, waste set
ComfortZone 110
projection: 121 mm
spout height: 110 mm
handle variant: lever handle
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
suitable for continuous flow water heaters
pop-up waste set G 1¼
material waste set: synthetic
connection type: G ⅜ connections
connection dimension: DN15
cold water in basic handle position
aerator can be easily removed with the help of a coin and without tools
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-logis-single-lever-basin-mixer-110-fine-coolstart-with-pop-up-waste-set-71254000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use

Documents

Downloads

Produktdatenblatt_71254000.pdf

pdf
2 MB

Hansgrohe-Group-EPD-Basin-Faucets-2023.pdf

pdf
1 MB

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Logis 110 Fine CoolStart_Montageanleitung.pdf

pdf
7 MB

Manufacturer note

Remove&Clean

Aerator with coin slot

Limescale and dirt on the outlet can be removed in no time - without tools. If residue has formed, simply use a coin to unscrew the aerator. Place it in citric acid for ten minutes, rinse, screw it back in with a coin, and you're done.

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

Green Building Certifications

With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

CoolStart

Saving energy made easy

With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

EU Taxonomy

Substantial Contribution

With a maximal  flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

Contact the manufacturer

Hansgrohe SE

Hansgrohe SE

Auestraße 5-9
77761 Schiltach
