Hansgrohe SE

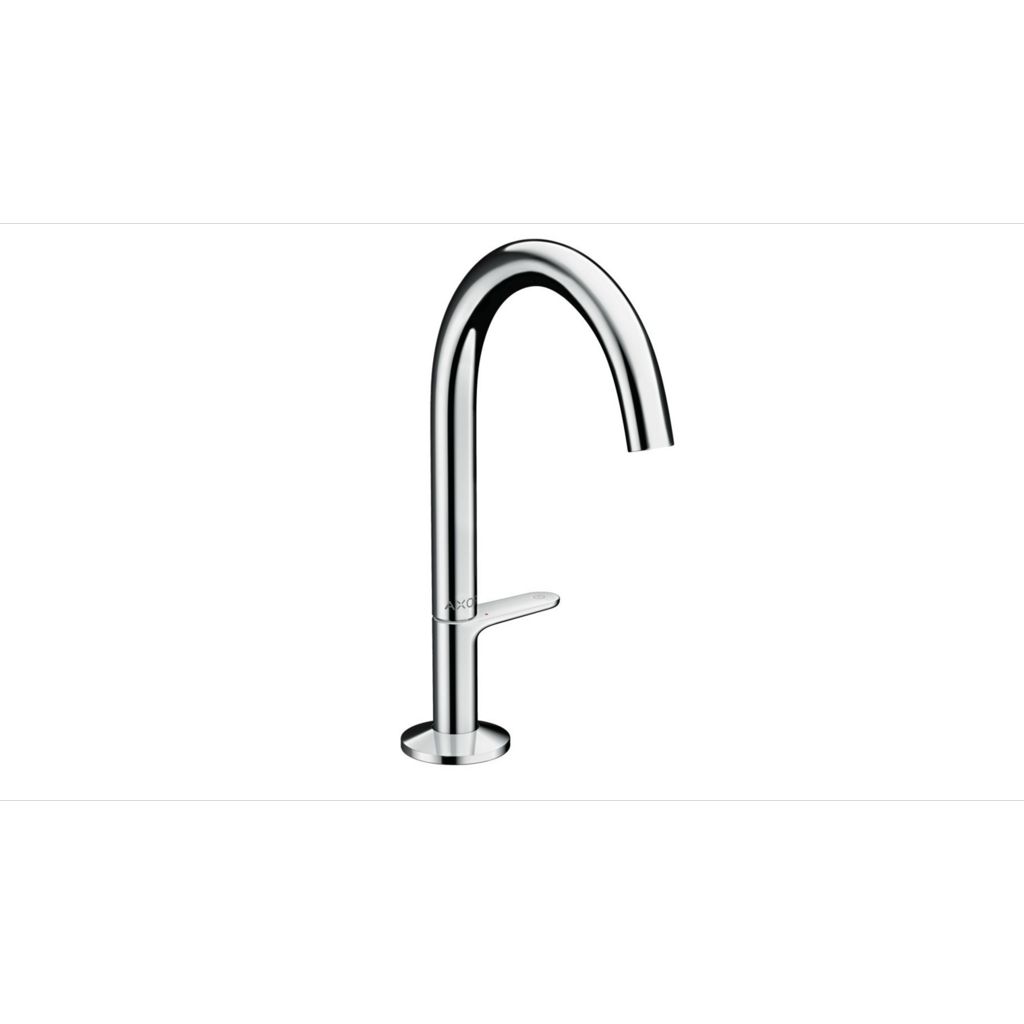

Axor One Waschtischmischer Select 170 mit Push-Open Ablaufgarnitur

Registration Code: E9CRKA

Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 48020000
Surface: Chrome
consists of: Basin mixer, waste set
ComfortZone 170
projection: 140 mm
spout height: 170 mm
handle variant: Select
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
Select cartridge with temperature control
temperature limitation adjustable
suitable for continuous flow water heaters
push-open waste set G 1¼
material waste set: metal
connection type: G ⅜ connections
connection dimension: DN15
cold water in basic handle position
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-axor-one-basin-mixer-select-170-with-push-open-waste-set-48020000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use

Documents

Downloads

Produktdatenblatt_48020000.pdf

pdf
1 MB

Axor One WTM Select 170 mit Push-Open Ablaufgarnitur_Montageanleitung.pdf

pdf
14 MB

Hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Manufacturer note

EU Taxonomy

Substantial Contribution

With a maximal  flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

Green Building Certifications

With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

Select

Select for faucets

Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

CoolStart

Saving energy made easy

With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.

Air Power

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
