Hansgrohe SE

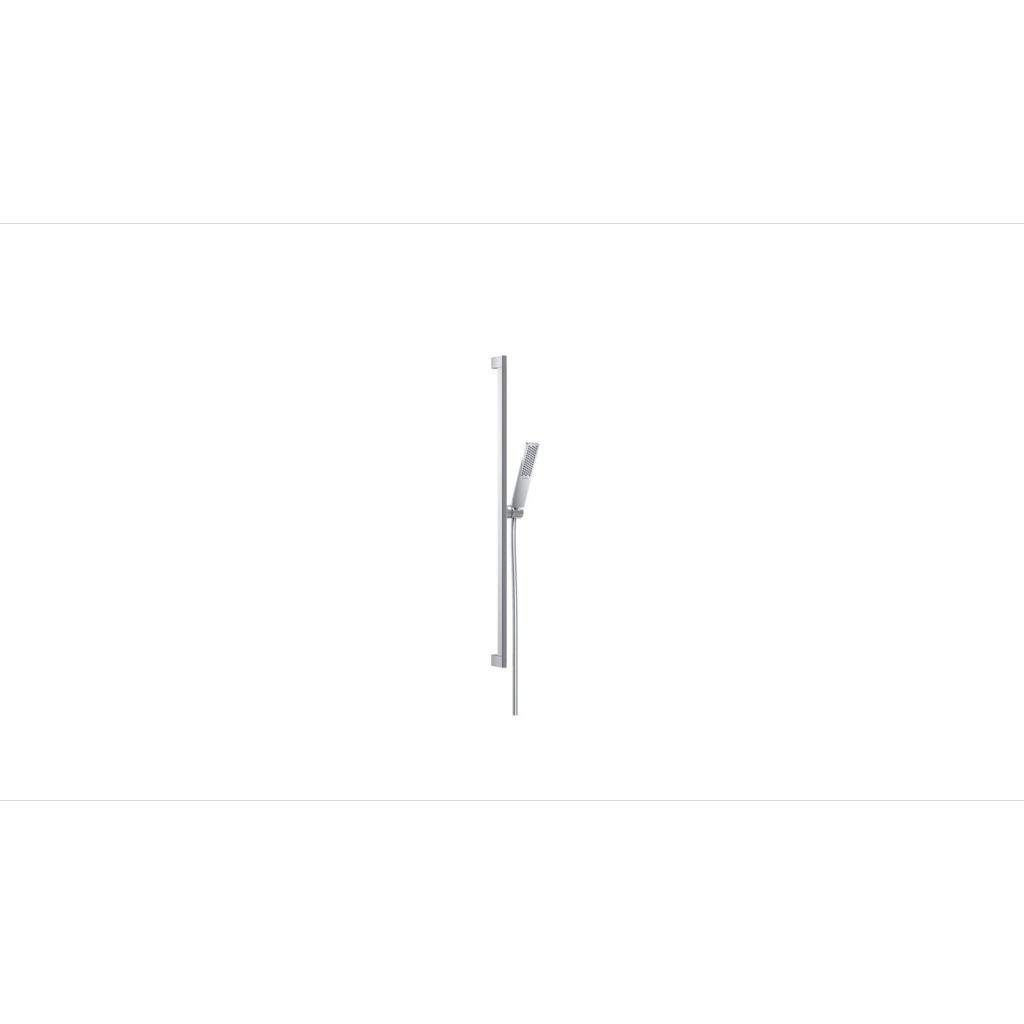

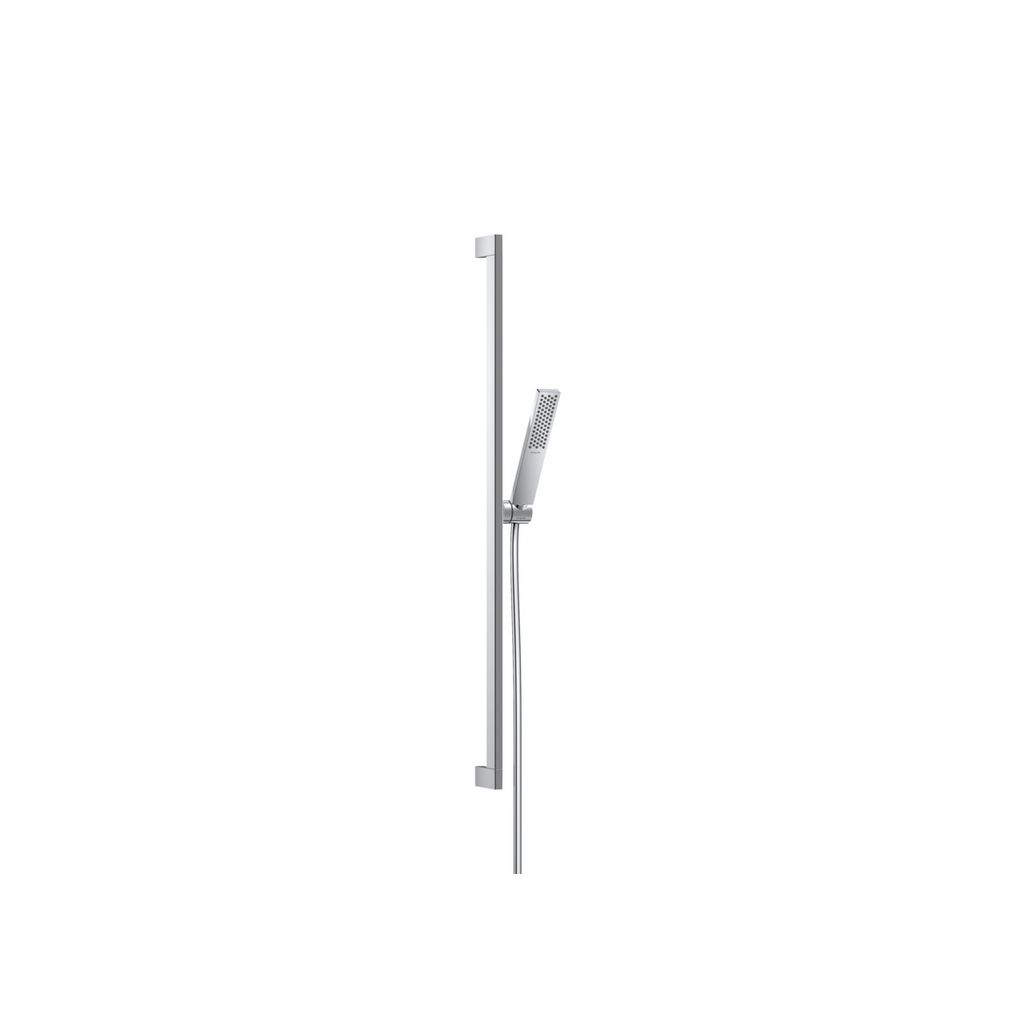

hansgrohe Pulsify E Brauseset 100 1jet EcoSmart+ mit Brausestange 90 cm
Registration Code: CF5V1T
Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description
Article Number: 24381000Surface: Chrome
consists of: baton hand shower, shower bar, shower hose, slider
shower head size: 100 x 25 mm
spray type: PowderRain
maximum flow rate at 3 bar: 5 l/min
minimum flow pressure: 0,9 bar
hand shower holder for right- and left-hand installation
metal hand shower holder
hand shower holder with locking mechanism
wall mounting: screw fastening
wall supports made of plastic
wall bar type: swivelling shower bar
profile pipe: cubic
pipe length: 950 mm
drilling distance 915 mm
shower hose with conical nut on both ends
pivot connector prevents hose from tangling
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/articledetail-pulsify-e-shower-set-100-1jet-ecosmart-with-shower-bar-90-cm-24381000
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Manufacturer note
EcoSmart+
Save water and protect the climate
With a consumption of up to 60% less water than our conventional models, this shower is particularly efficient and economical, reducing water and energy costs every day and conserving valuable resources.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.EU Taxonomy
Substantial Contribution
With a maximal flow rate of 5l/min this showerset is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.Green Building Certifications
With a maximum flowrate of 5 l/min this showerset is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.Contact the manufacturer
Hansgrohe SE
Hansgrohe SE
Auestraße 5-9
77761 Schiltach
