Hansgrohe SE

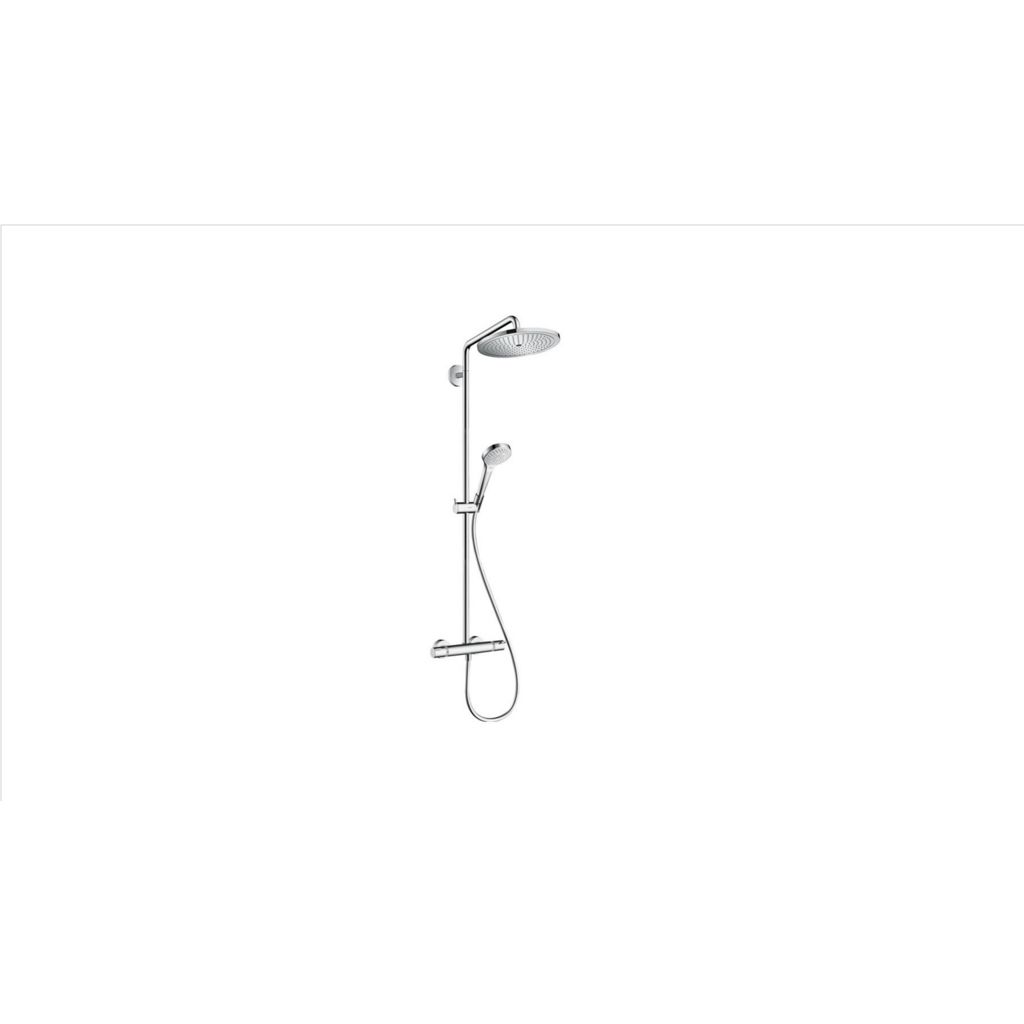

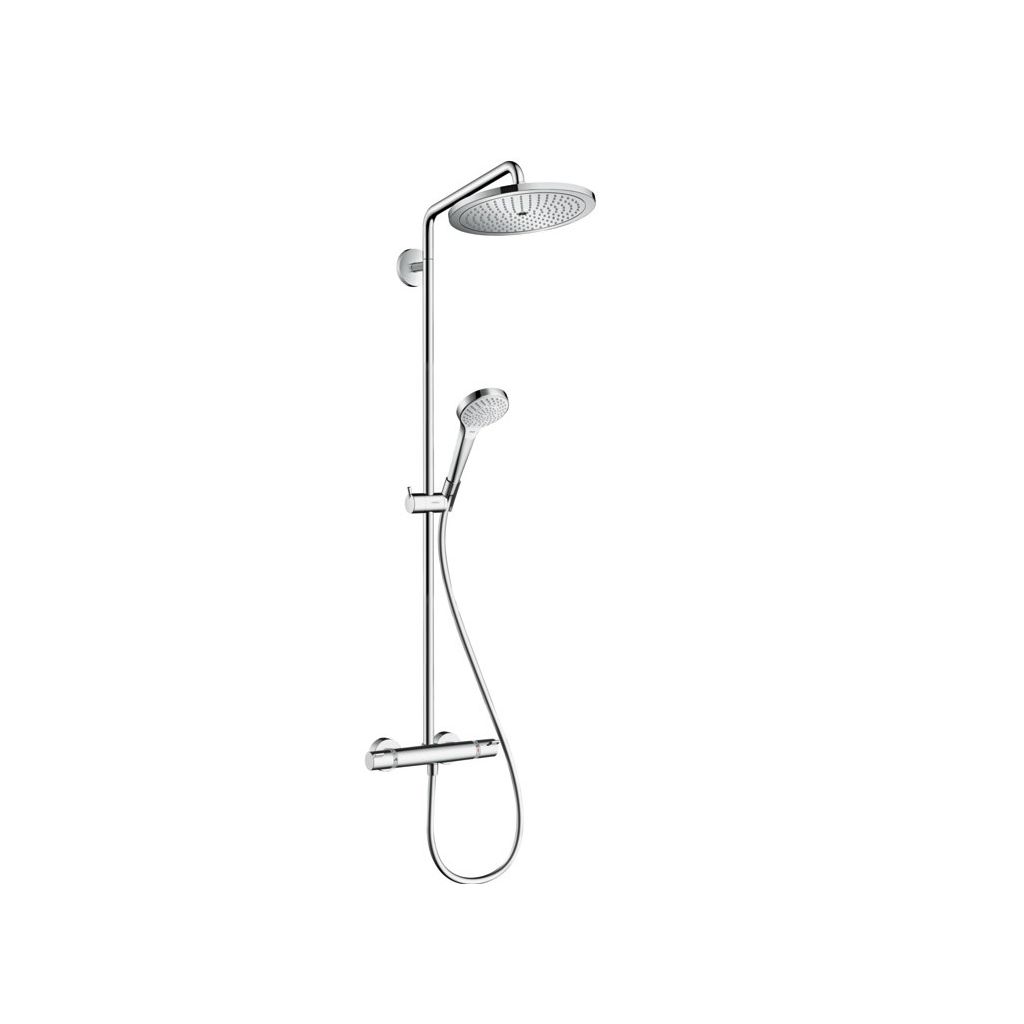

hansgrohe Croma Select S Showerpipe 280 1jet EcoSmart mit Thermostat
Registration Code: JVM59K
Quality phase
ENV1.2 Version 2018 Risiken für die lokale Umwelt
not relevant for consideration
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Product description
Article number: 26794000Surface: Chrom
consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
overhead shower Croma 280
shower head size overhead shower: 280 mm
spray type overhead shower: RainAir
flow rate RainAir spray (at 3 bar): 9 l/min
spray type hand shower: Massage spray, IntenseRain, SoftRain
flow rate of hand shower at 3 bar: 9 l/min
maximum flow rate for Showerpipe at 3 bar: 9 l/min
minimum flow pressure: 2,2 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
pipe can be shortened in height
shower bar diameter: 22 mm
height-adjustable hand shower holder
shower arm length overhead shower: 400 mm
swivel shower arm
thermostat Ecostat Comfort
safety stop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension DN15
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
2 functions
EPD forShowerpipes available
Instructions for use
Hansgrohe Service Instructionhttps://pro.hansgrohe.com/
Reference to the DGNB system
ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use
Manufacturer note
EcoSmart
Want to save water? With pleasure!
This showerpipe uses up to 40% less water than our conventional showers. In this way, it reduces water and energy costs every day and conserves valuable resources. For long-lasting soothing showering pleasure.QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.Contact the manufacturer
Hansgrohe SE
Hansgrohe SE
Auestraße 5-9
77761 Schiltach
