Kampmann GmbH & Co. KG

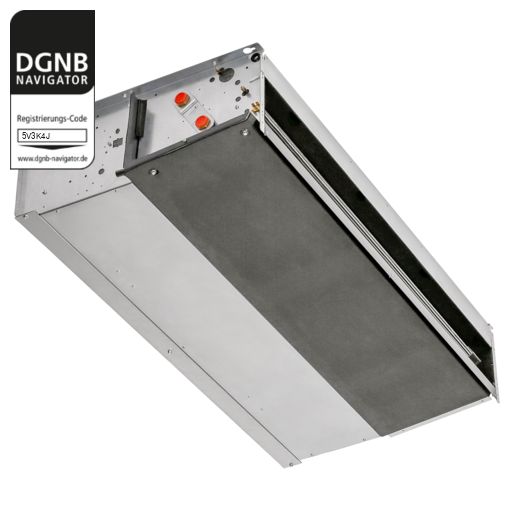

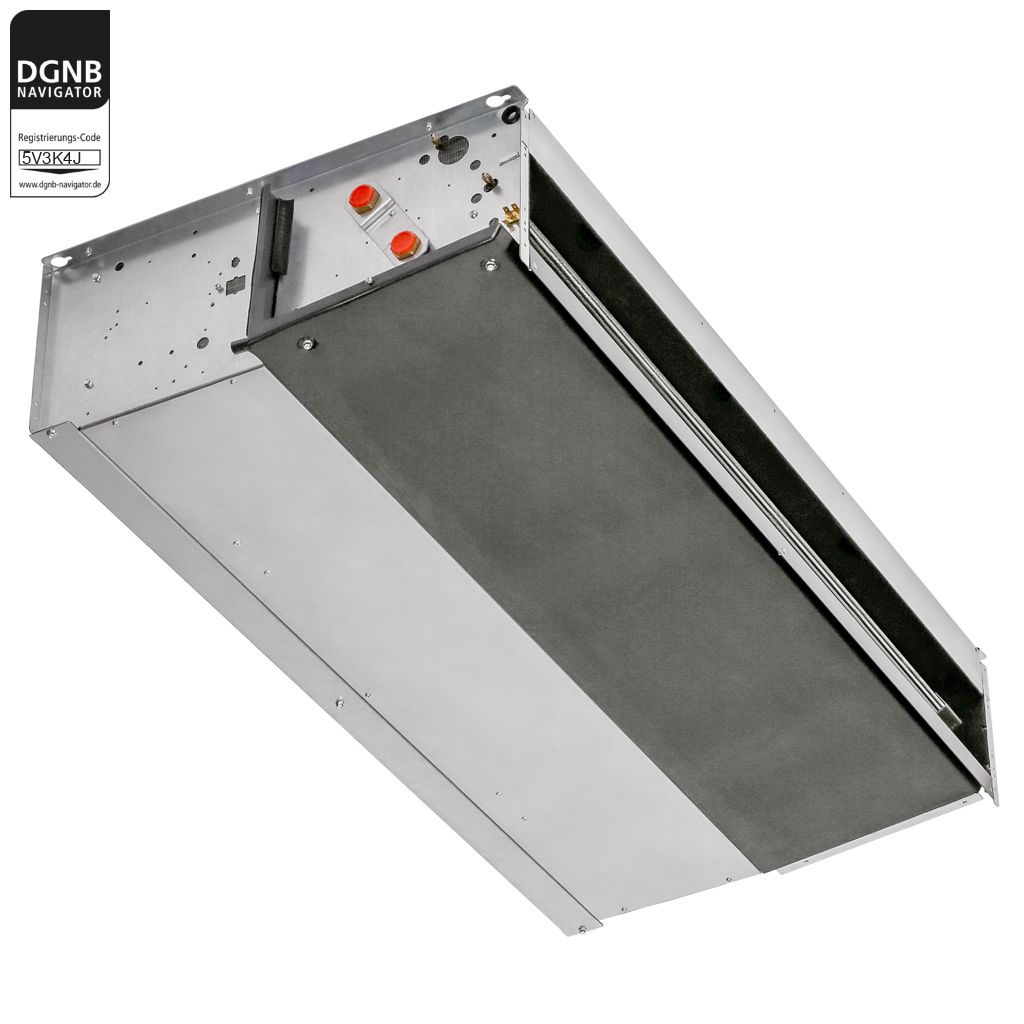

Venkon XL - Baugröße 3
Registration Code: 5V3K4J
Metalle
Product description
Fan coils are used in comfort buildings of all types with high heating and cooling requirements as well as exacting user requirements. The fan coil Venkon XL is available in four sizes for each application and building of any kind that needs to be cooled and/or heated. The special characteristic is that the Venkon XL guarantees high outputs, even with high air-side pressure loss requirements. The Venkon XL has a convector through which hot water flows for heating and cold water flows for cooling. The convector consists of round copper pipes with aluminium fins and is available as a 2- and 4-pipe system. The fan is controlled by a stepless speed control via an external 0-10 V signal. In order to safely discharge the condensate produced, the units are equipped with a condensate tray and, if necessary, a condensate pump. The units are also equipped with an electrotechnical control system in order to be able to regulate the units according to the customer’s requirements.Instructions for use
The units are only intended to be used for heating and cooling air in frost-free and dry rooms. Within the room, the unit needs to be connected to the building's heating/cooling/ventilation system and to the building's waste water and power network. The operating limits and limits of use described in the installation instructions must be observed.Reference to the DGNB system
ENV1.1 Building life cycle assessment
ENV1.1 Building life cycle assessment
Photochemical ozone creation potential (POCP)
1) Production stage
1,40E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
5,19E-02
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,81E-03
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-4,37E-01
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Unit
kg NMVOC-Equivalent
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Non-renewable primary energy demand (PEne)
1) Production stage
3,76E+03 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,31E+02 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
3,46E+00 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,04E+03 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Renewable primary energy demand (PEe)
1) Production stage
8,48E+02 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,47E+01 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
-2,37E+00 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-4,73E+02 MJ
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
General life cycle assessment data
Building material class
not relevant
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Reference Unit
1 unit
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
If necessary, conversion of the reference unit
No conversion necessary.
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
End of life cycle
The end of life is modeled according to the JRC Report, Annex C V2.1.
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Useful life
20 years
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Global Warming Potential (GWP)
1) Production stage
2,74E+02
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
8,81E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
2,51E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,12E+02
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CO2-Equivalent
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Eutrophication potential (EP)
1) Production stage
2,41E-02; 7,23E-01; 4,13E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,05E-03; 5,15E-02; 1,51E-01
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
2,70E-06; 5,99E-04; 5,50E-03
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-3,78E-03; -1,04E-01; -1,22E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Unit
kg P-Eq. [EP-freshwater]; kg N-Eq. [EP-marine]; mol N-Eq. [EP-terrestrial]
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Acidification potential (AP)
1) Production stage
3,99E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
1,36E-01
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
1,31E-03
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-1,07E+00
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Unit
mol H+- Equivalent
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Ozone Depletion Potential (ODP)
1) Production stage
4,22E-06
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
2) Use stage
2,20E-07
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
3) End of life stage
4,16E-09
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
4) Benefits and loads beyond the system boundries
-6,66E-07
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
Unit
kg CFC11-Equivalent
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
ENV2.2 Potable water demand and waste water volume
ENV2.2 Potable water demand and waste water volume
Installation-specific connected load
Flow rate (for sanitary fittings)
not relevant l/sec
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Average flushing volume (of the sanitary equipment)
not relevant l/flush
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
ECO1.1 Life cycle costs
ECO1.1 Life cycle costs
Actual useful life
20 years
- Source
- EPD-IES-0015979
- Quality
- [Externally audited specific manufacturer information]
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO1.4 Ensuring sustainability aspects in tendering and contracting
Tender textes
Product-related tender texts available, reference to EPD and registration in the DGNB Navigator in the tender texts.
- Source
- Tender texts Venkon XL
- Quality
- [Unaudited manufacturer specification]
PRO2.5 Preparation of sustainable use
PRO2.5 Preparation of sustainable use
Maintenance, inspection, operating and care instructions
Yes, included in assembly instructions.
- Source
- Assembly instructions Venkon XL
- Quality
- [Unaudited manufacturer specification]
SOC1.2 Indoor air quality
SOC1.2 Indoor air quality
Indoor hygiene - volatile organic compounds VOCs
Formaldehyde concentration
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Other emission tests / labels
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TVOC value
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Approval test according to AgBB scheme is available
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.3 Acoustic comfort
SOC1.3 Acoustic comfort
Rated building sound insulation value R`w
not relevant dB
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
SOC1.4 Visual comfort
SOC1.4 Visual comfort
Visual contact with the outside
Class of the sun/glare protection with regard to visual contact to the outside
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Colour rendering
Color rendering index Ra of artificial lighting
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
TEC1.3 Quality of the building envelope
TEC1.3 Quality of the building envelope
Class of air permeability (joint permeability)
not relevant
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Heat transfer coefficient U
not relevant W/(m²K)
- Source
- Manufacturer
- Quality
- [Unaudited manufacturer specification]
Contact the manufacturer
Kampmann GmbH & Co. KG
Kampmann GmbH & Co. KG
Friedrich-Ebert-Straße 128-130 49811 Lingen (Ems)
Related products from this manufacturer
#33QV7U

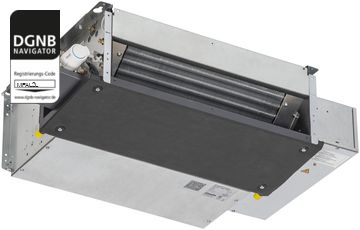

Venkon - Baugröße 61
Kampmann GmbH & Co. KG
In Komfortgebäuden aller Art mit hohem Heiz- und Kühlbedarf sowie hohem Raumnutzer-Anspruch kommen Fan Coils zum Einsatz. Der Fan Coil Venkon ist in vier Baugrößen erhältlich und kann als Grundgerät flexibel mit Verkleidungen kombiniert werden. Der E…
#V0Q03E

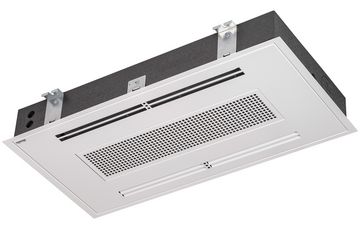

KaDeck einseitig ausblasend, feuchte Kühlung
Kampmann GmbH & Co. KG
In Büroräumen mit hohem Glasflächenanteil und Personenaufkommen entstehen Kühllasten, die ohne eine Klimaanlage nicht abgeführt werden können. Für diesen Einsatzbereich bietet der KaDeck eine flexible Raumklimatisierung für die Decke zum Kühlen und H…
#72JX5X

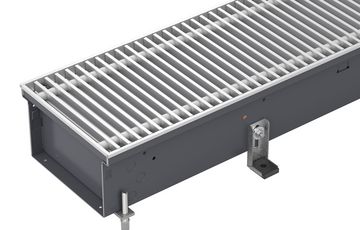

Katherm QE 1700 mm
