Hansgrohe SE

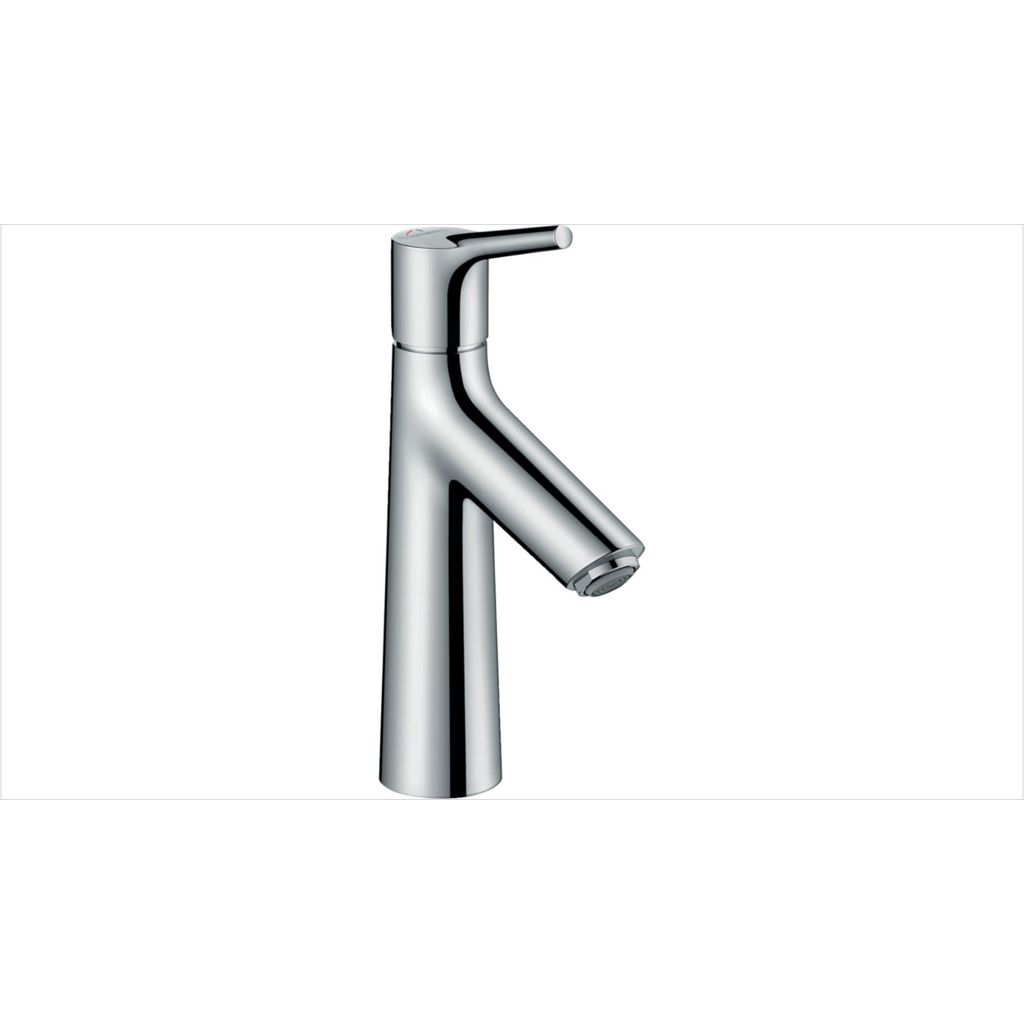

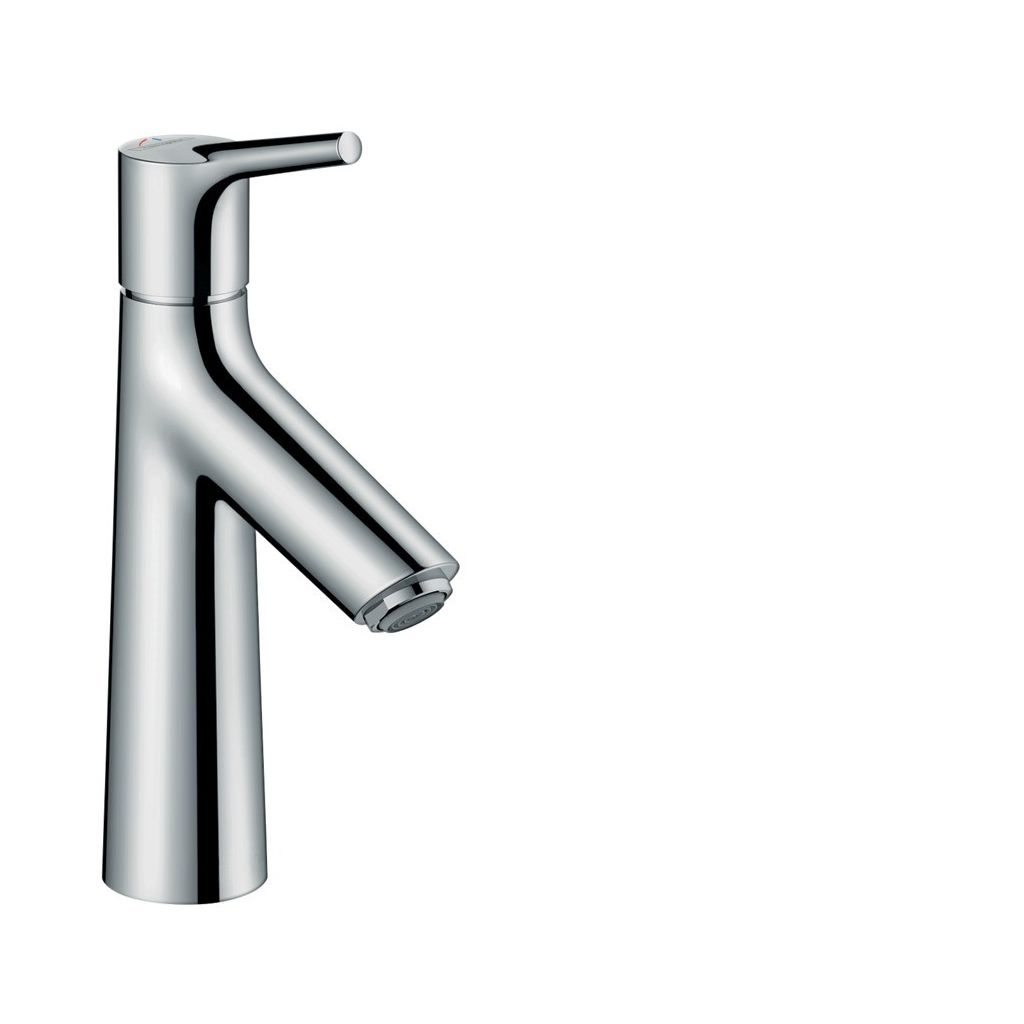

hansgrohe Talis S Einhebel-Waschtischmischer 100 CoolStart mit Zugstangen-Ablaufgarnitur

Registration Code: P6YU02

Quality phase
ENV1.2 Version 2023 Risiken für die lokale Umwelt
not relevant for consideration
Metalle

Product description

Article number: 72022000
Surface: Chrome
consists of: single lever basin mixer, waste set
ComfortZone 100
projection: 93 mm
spout height: 98 mm
handle variant: pin handle
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
suitable for continuous flow water heaters
pop-up waste set G 1¼
material waste set: metal
connection type: G ⅜ connections
connection dimension: DN15
cold water in basic handle position
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
EPD available for basin mixer

Instructions for use

Hansgrohe Service Instruction
https://pro.hansgrohe.com/articledetail-talis-s-single-lever-basin-mixer-100-coolstart-with-pop-up-waste-set-72022000

Reference to the DGNB system

ENV2.2 Potable water demand and waste water volume
ECO1.1 Life cycle costs
PRO1.4 Ensuring sustainability aspects in tendering and contracting
PRO2.5 Preparation of sustainable use

Documents

Downloads

Talis S 100 CoolStart_Montageanleitung.pdf

pdf
8 MB

Produktdatenblatt_72022000.pdf

pdf
2 MB

hansgrohe Reinigungsempfehlung.pdf

pdf
1 MB

Hansgrohe-Group-EPD-Basin-Faucets-2023.pdf

pdf
1 MB

Manufacturer note

CoolStart

Saving energy made easy

With this energy saving tap hot water only flows when the lever is actively moved - while standard taps already consume energy when the lever is opened in the basic position. CoolStart supports reducing the resources used, CO2 emissions and costs.

EU Taxonomy

Substantial Contribution

With a maximal  flow rate of 5l/min this basin mixer is compliant with the EU Taxonomy requirements and can make a Substantial Contribution to the relevant environmental goals defined by the EU.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

EcoSmart

Saving resources with pleasure

hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Green Building Certifications

With a maximum flowrate of 5 l/min this basin mixer is compliant with the requirements of many Green Building Certification Schemes (e.g. LEED, BREEAM, DGNB) and can make a major contribution in several credit categories (e.g. water efficiency) within the certification process.

Contact the manufacturer

Hansgrohe SE

Hansgrohe SE

Auestraße 5-9
77761 Schiltach
